cargen · Forge

The car-generation project hub: AI-designed cars checked against validated solvers and real, cited test data. Physics first, starting with the P1a steel-tube crush test in OpenCourant.

Status: P1a tube crush and the README research are in progress. Repo content is being pushed to GitHub.

On GitHub

galion-studio/cargen: the main car project repo
README
Research: crush experiments, licences, materials, all with cited sources
Graphs
Logo files
galion-studio/forge: the Forge front repo

Graphs

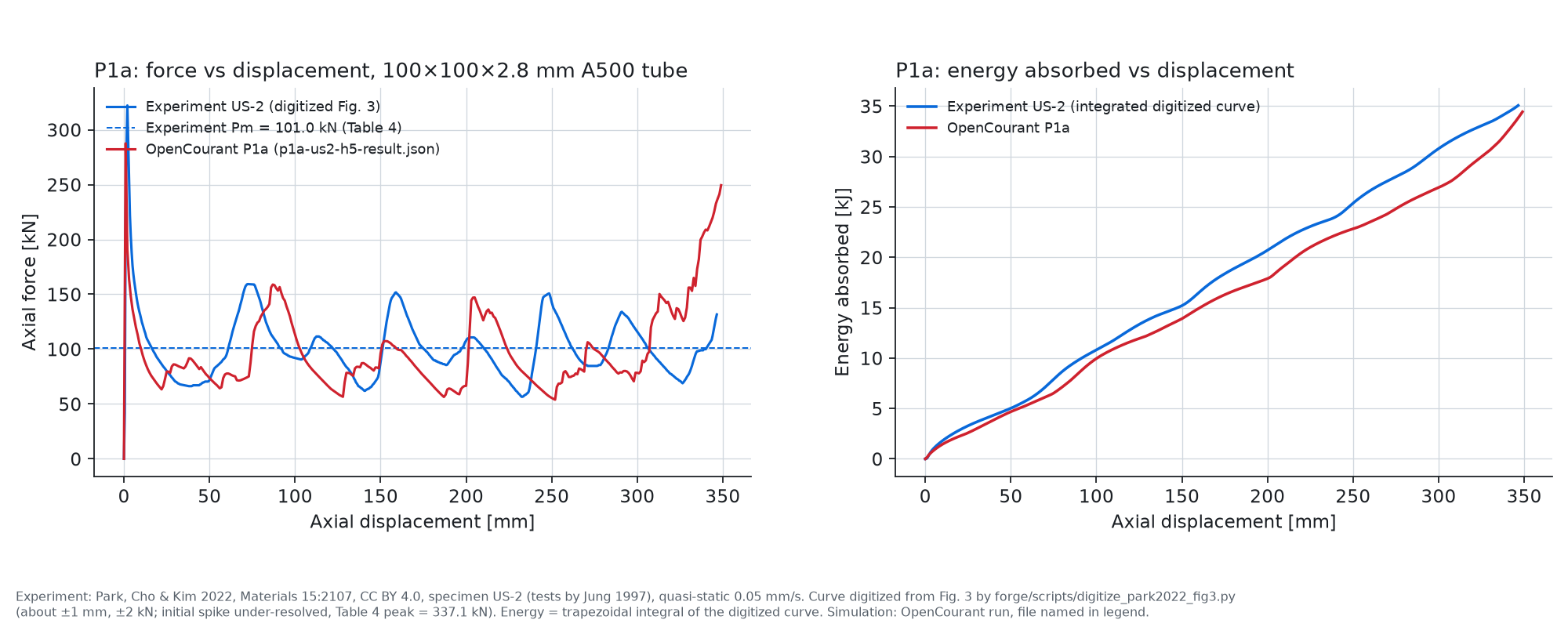

P1a force and energy versus displacement — P1a tube crush: force and energy

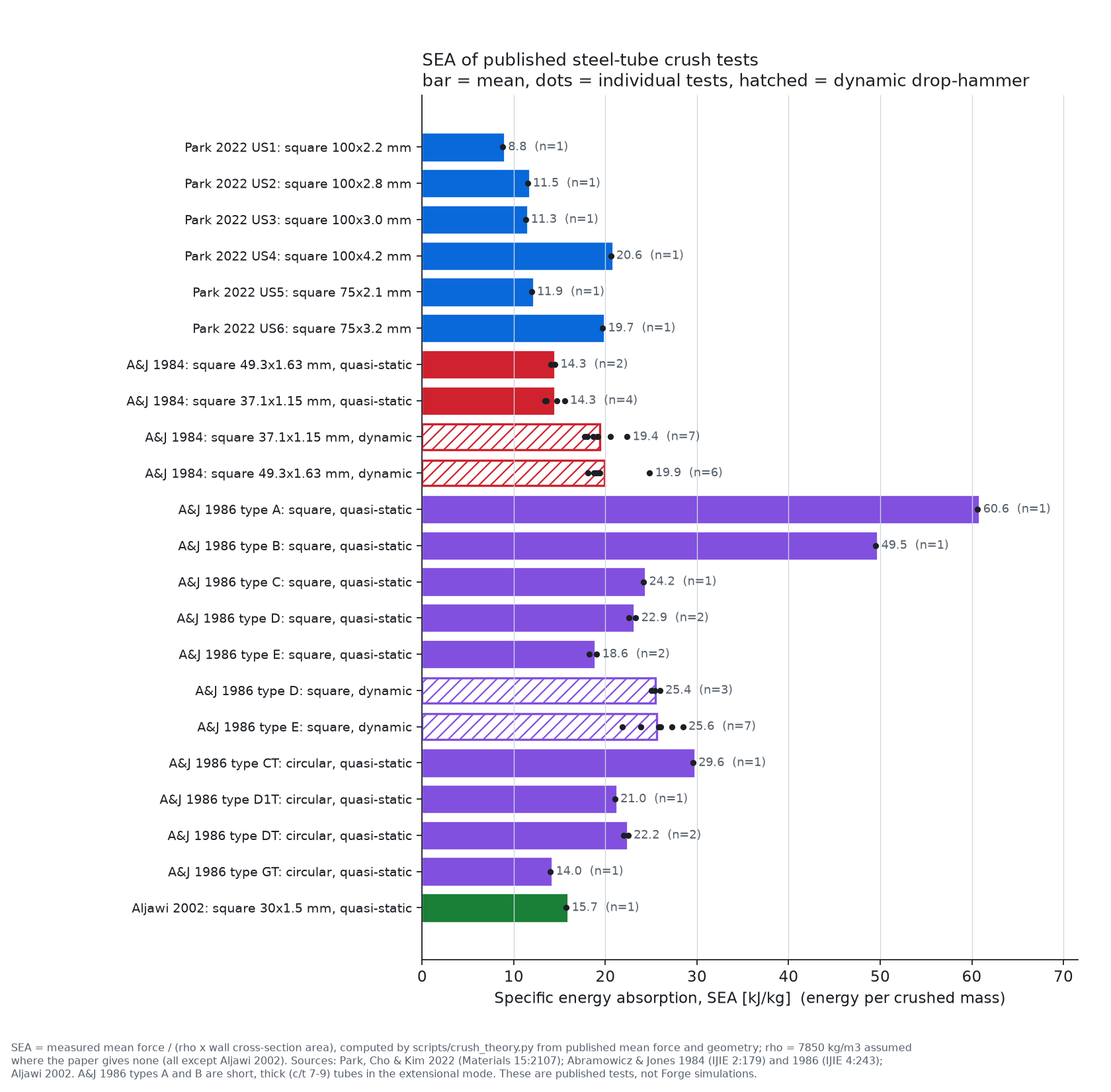

Specific energy absorption — Specific energy absorption (SEA) from the crush experiment data

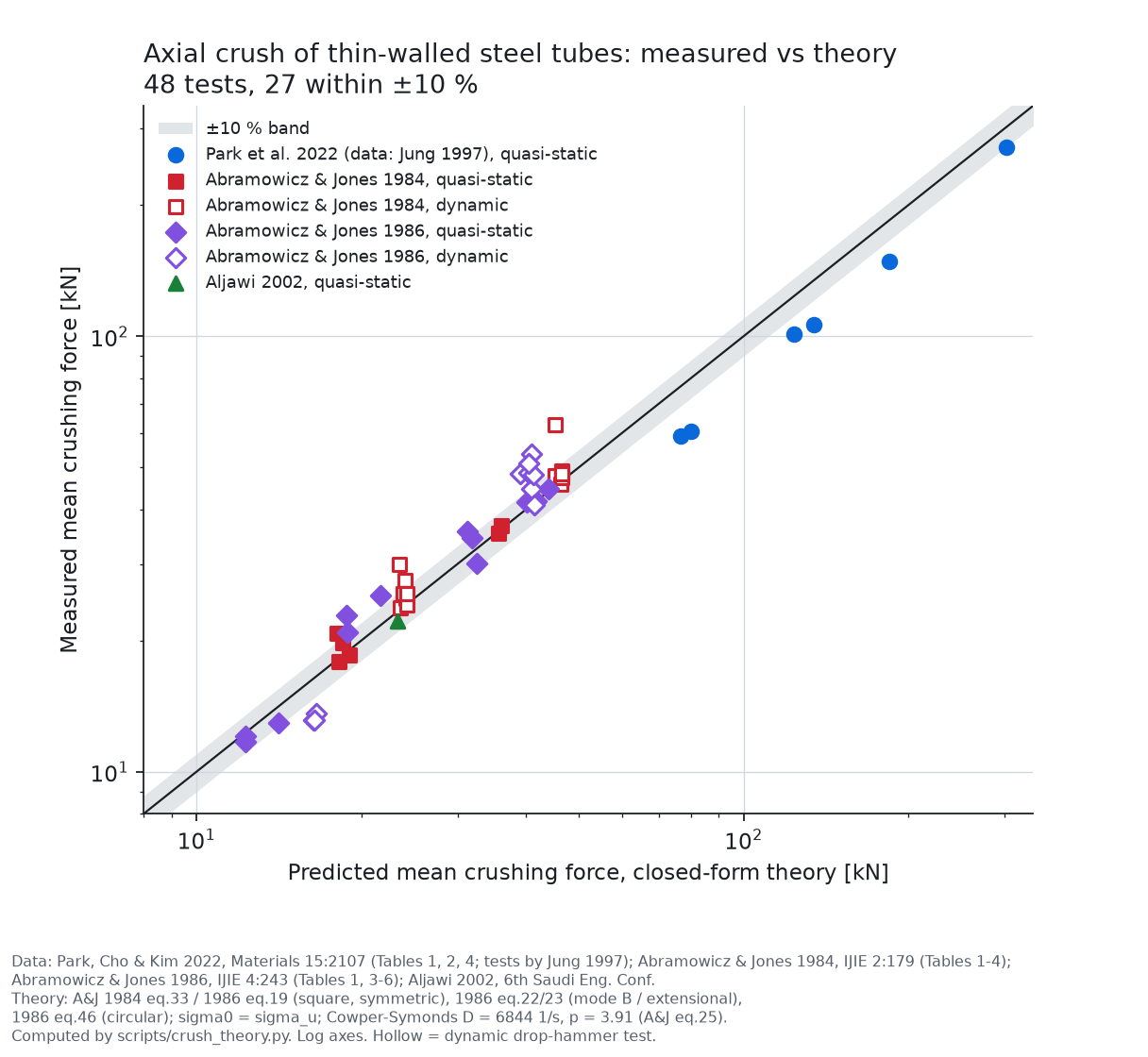

Theory versus experiment — Parity plot: predicted versus measured crush results

Logo

MIT licensed. Solver numbers come from validated solvers and real data only.
